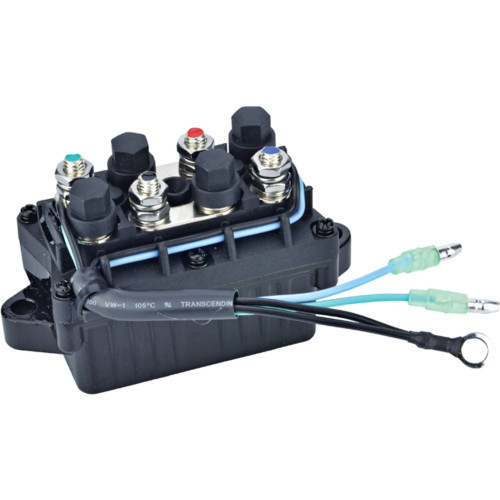

Tilt Trim Relay for Yamaha 40HP 50HP 60HP 70HP 85HP 90HP, 6H1-81950-00-00

Q: What is the number one cause of PT&T pump failure?
A: Corrosion and lack of maintenance lead to many failures. A quick clean and lubricant will go a very long way here, especially important if you have been boating in saltwater.

Q: How to maintain a PT&T motor?
A: It’s pretty simple. Use silicone lubricant and wipe away any moisture. Then lubricate the rams with a marine grade grease. Use die electric grease on the relay spades and check the terminals for corrosion.

Q: What type of motors do PT&T system use?
A: 12 Volt DC reversing motors.

Q: How do I know if my PT&T switch is working?
Q: What is the number one cause of PT&T pump failure?
A: Corrosion and lack of maintenance lead to many failures. A quick clean and lubricant will go a very long way here, especially important if you have been boating in saltwater.

Q: How to maintain a PT&T motor?
A: It’s pretty simple. Use silicone lubricant and wipe away any moisture. Then lubricate the rams with a marine grade grease. Use die electric grease on the relay spades and check the terminals for corrosion.

Q: What type of motors do PT&T system use?
A: 12 Volt DC reversing motors.

Q: How do I know if my PT&T switch is working?
A: You will hear a slight click from the relays when pressing the power switch.

Q: What is the purpose of a PT&T motor?
A: It adjusts the boat’s power and efficiency by flattening out once it clears the bow wave.

Q: How will I know if my trim is out too far?
A: You will notice the RPM’s will go up and the speed will come down.

Q: When do I trim the boat back in?
A: When your back is down at idle or in no wake zones or coming to a stop.

Q: Blue wire? Green wire? Black wire? What do they do?
A: The blue wire raises and the green wire lowers. Black wires are commonly found on older systems that don’t receive ground through the motor housing via an engine chassis ground. Just remember “Blue sky and Green grass”. Blue raises it to the sky, green drops it to the grass.

Q: If the PT&T motor works fine, but the engine will not rise or lower?
A: If the PT&T motor works fine, but the engine won’t rise or lower, leaks hydraulic fluid or settles down when in the raised position or won’t stay trimmed, chances are the problem is with the hydraulic pump or valve body.

Q: What are some indicators I need to service the PT&T system?

• Lack of movement. If you can hear it running but moving very little.
• Intermittent operation. Sometimes it works, sometimes it doesn’t. If it becomes undependable and doesn’t work every time.
• Slow, noisy, jerking action with grinding whining and just not smooth.
• Stuck in one position or the other – either up or down.
